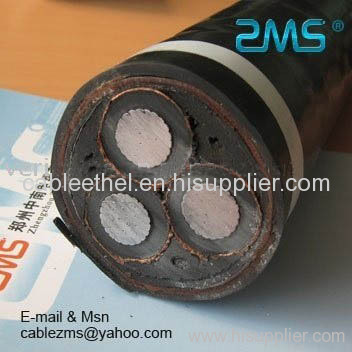

10kV XLPE insulated steel wire armored Power Cable

Payment Terms:	T/T,L/C
Place of Origin:	Henan, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: Al(Cu)/XLPE/STA/PVC

Production Capacity: 80 Kilometer/Kilometers per...

Delivery Date: depend on order quantity of...

Type: Medium Voltage

Jacket: PVC

Brand Name: ZMS Cable/OEM

Armor material: Steel wire or steel tape ar...

Means of Transport: Ocean,Land,Air

Packing: MV Power cable on standard ...

Application: Power Station

Insulation Material: XLPE

Conductor Material: Aluminum

Conductor material: Copepr or Aluminum

35kV and below voltage Power Cable
Copper or Aluminum conductor
XLPE insulation
Steel wire or steel tape armored
PVC inner and outer sheath

Flame retardant Cu/AL conductor XLPE insulated have no the magnetism Steel Tape Armored(STA) PVC/PE sheath Power Cable is used to transmit power on the power tansmission and distribution of AC,rated voltage 35kv or lower.Incompatison with PVC insulation cable.

The XLPE power cable boasts not only excellent electric character,mechanical chatacter,heat and agingresistant character,environmental stress-resistant chatacter and chemical corrosionresistant chatacter,but simplw structure,light weight,no restiction by laying drop,and hight temperature allowance for long-term working as well.

Executive standard

1)GB/T12706.1-2002(Equivalent IEC 60502) Rated voltage 1kv (Um=1.2kv)and power cable

2)GB/T12706.2-2002(Eqquivalent IEC60502-2) Rated voltage6 kvUm=7.2kv and Um=36kv power cable

3)G/BT12706.3(VOLTAGE Grade Overtep IEC 60502-2) Rated Voltage3.5V Um=40.5kv and power cable.

Working conditions:

1)The maximum working temperatuie of thr conductor temperature is +90.

During having a short (lasting less than 5 seconds )the maximum temperature of the cable conductor shall not be above +250

Environment temperture should be no lower than+0 for laying the cable.

2) Bending radius allowance of the cable:

Single core cable:No steel tape cable 20D,steel tape cable 15D

Cores cabel: No steel tape cable 15D steel tape cable 12D

Notes: D ptactical esternal diameter of cable.

type		Description	Application Occasion
Cu	Al
YJV	YJLV	XLPE insulation PVC sheath power cable	to be laid indoors,in tunnel,cable durrow or pipe,

YJY	YJLY	XLPE insulation PE sheath power cable

YJV₂₂	YJLV₂₂	XLPE insulation,steel tape armored,PVC	To be laid underground,the cable could bear certain
		sheath power cable
YJV₂₃	YJLV₂₃	XLPE insulation, steel tape armor,PVC
		sheath power cable
YJV₆₂	YJLV₆₂	XLPE insulation,have no the magnetism
		steel tape armor,PE sheath power cable
YJV32	YJLV32	XLPE insulation,thin steel-wire armor,	Be applicable to the well,water inside and fall in
		PVC sheath power cable
YJV₇₂	YJLV₇₂	XLPE insulation,have no the magnetism thick
		steel-wire armor,pvc sheath power cable
YJV₄₂	YJLV₄₂	XLPE insulation,thick steel-wire armor,PVC	Be applicable to the well,under with the bottom of sea,the
		sheath power cable
